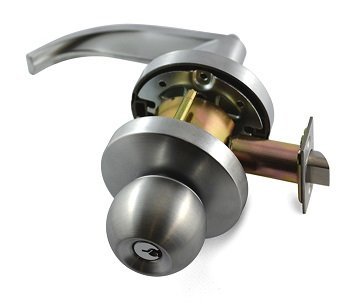

Carbine Doncaster PD7000KN-L1 Entrance Lever & Knob

Carbine Doncaster PD7000KN Entrance L1 Lever & Knob

Carbine Doncaster Entrance lock is a commercial grade leverset that has a large 85mm rose which can cover over larger holes from previously fitted locks on your door.

• Suitable for doors from 35mm to 50mm thick.
• Fire rated for 4 hours to Tyco specifications.
• L1 lever design compliant with BCA codes and AS1428

Features include:

• Function: Outside: opened by knob when free. Key unlocks and retracts the latch
• Inside: opened by lever at all times. Push button locks exterior knob only
• Fire rated for 4 hours to Tyco specifications
• Cylindrical fixing
• Suits Silca LW5 profile
• Cylinder is a 6 pin PD style brass cylinder
• Supplied standard with a 70mm backset, 60mm available upon request and an extension tube to extend to 127mm is available
• 85mm wide rose with two locating fixing holes to prevent the leverset from spinning
• Suitable for doors 35mm - 50mm in thickness extension kit is provided to make it suit the 50mm
• Concealed fixing
• Stainless steel latch bolt with a 12mm projection
• L1 lever design compliant with BCA codes and AS1428

Finish: Satin Chrome

Super Heavy Duty Commercial Entrance Leverset
