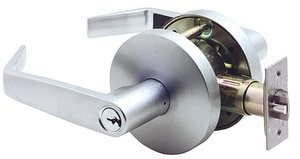

Carbine Doncaster PD7012 Classroom Leverset

Carbine Doncaster PD7012 Classroom Leverset

Carbine Doncaster Classroom lock is a commercial grade leverset that has a large 85mm rose which can cover over larger holes from previously fitted locks on your door.

Suitable for doors from 35mm to 50mm thick.

Fire rated for 4 hours to Tyco specifications.

Features include:

• Outside: opened by lever when unlocked. Key locks or unlocks outside lever
• Inside: opened by lever at all times
• Fire rated for 4 hours to Tyco specifications
• Cylindrical fixing
• Suits Silca LW5 profile
• Cylinder is a 6 pin PD style brass cylinder
• Supplied standard with a 70mm backset, 60mm available upon request and an extension tube to extend to 127mm is available
• Square shaped lever handles with a strong lever return spring
• 85mm wide rose with two locating fixing holes to prevent the leverset from spinning
• Suitable for doors 35mm - 50mm in thickness extension kit is provided to make it suit the 50mm
• Concealed fixing
• Stainless steel latch bolt with a 12mm projection

Finish: Satin Chrome

Super Heavy Duty Commercial Classroom Leverset
