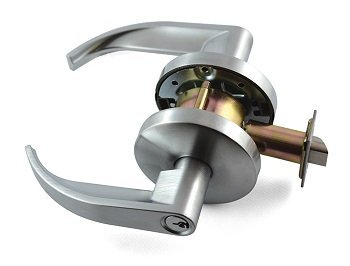

Carbine Doncaster PD7062-L1 Vestibule Leverset

Carbine Doncaster PD7062-L1 Vestibule Leverset

Carbine Doncaster Vestibule  lock is a commercial grade leverset that has a large 85mm rose which can cover over larger holes from previously fitted locks on your door.

L1 lever design compliant with BCA codes and AS1428

Suitable for doors from 35mm to 50mm thick.

Fire rated for 4 hours to Tyco specifications.

Features include:

• Outside: opened by key only. The outside lever always remains rigid
• Inside: opened by lever at all times.
• Fire rated for 4 hours to Tyco specifications
• Cylindrical fixing
• Suits Silca LW5 profile
• Cylinder is a 6 pin PD style brass cylinder
• Supplied standard with a 70mm backset, 60mm available upon request and an extension tube to extend to 127mm is available
• Square shaped lever handles with a strong lever return spring
• 85mm wide rose with two locating fixing holes to prevent the leverset from spinning
• Suitable for doors 35mm - 50mm in thickness extension kit is provided to make it suit the 50mm
• Concealed fixing
• Stainless steel latch bolt with a 12mm projection

Finish: Satin Chrome

Super Heavy Duty Commercial Vestibule Leverset
