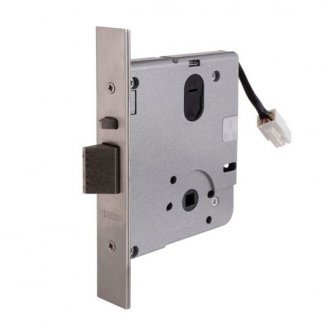

FSH Electric Lock FEL990 Non Monitored PTL/PTO

FSH Electric Lock FEL990 Non Monitored PTL/PTO

The FEL990 Series Electric Mortice Lock is a true multi-functional locking device. It has been developed for simplicity - simplicity for the installer and the end-user.

Available in either non-monitored or monitored.

The FEL990 Series locks can be easily site configured power to lock (fail safe) or power to open (fail secure) single or double cylinder.

The lock can be operated by push buttons, intercom systems and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers.

Fire rated to 4 hours.

Features:

• FEL990 non-monitored electric mortice lock.
• Multi-voltage - 12-24VDC @ 350mA momentary, 100mA operating including LED furniture if applicable.
• Reverse polarity protected.
• Lock secure status and key override microswitch max. rating 500mA @ 30VDC.
• Door status reed switch max. rating 100mA operating.
• 60 mm backset, 70, 89 and 127 mm also available.
• Supplied less cylinder.
• Suits door thickness 32-50 mm.
• 1.6 metre cable with 9 pin plug supplied.
• Finished in satin chrome.
• This product is a special order (BTO) and is not returnable.



fel990-mortice-lock-data-sheet.pdf (2MB)

FEL990-instructions.pdf (1MB)
