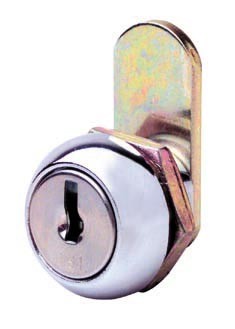

Round Face Camlock 16mm KD
FL Round Face Camlock 16mm Keyed to Differ
The 16mm cam locks are primarily used for sheetmetal manufacturing such as letterboxes and in some cases acrylic fabrication. These cam locks come with a hexagon nut for installation.
Features:
- Round face with a body length of 16mm
- threaded diameter 19mm & 16mm across the flats
- 16mm cam locks are nut fixed
- Supplied standard with 90 degree movement (12-3 o'clock). For 180 degrees or anti-clockwise remover or reposition internal quadrant
- keyblank Silca LF6R
- FL cam locks are supplied with 27mm straight cam fitted
- 6000 key series
- chrome plated finish
- keyed to differ (all locks on different key)
Keyed Alike locks also available from accessories below
ESTIMATE SHIPPING
Deliver To:
High Security Tubular Key Cam Lock Atlas LG19 Keyed to Differ
Upgrade the security of a standard cam lock with the Atlas LG19 that has higher security tubular keys and are not masterkeyed. Can be used on cabinet doors up to 14mm thick.
Supplied Keyed to Differ
Mounting plate for Cam lock
The plate can be used to stop a camlock from spinning if a round hole has been drilled for installation, or as a repair plate.
Cam lock Weather Cover Atlas
Weather cover to suit round face cam locks, extend the working life of cam locks outside on toolboxes letterboxes etc.
Protects from water, debris and dust getting into the keyway
Round Face Camlock 16mm Keyed Alike
16mm cam locks are commonly used in acrylic display units, letterboxes and general sheetmetal manufacture. Keyed Alike.
Firstlock Straight Cam 20mm
20mm Straight cam for use with FL Round face and Square face Cam locks
20mm length is measured from centre of hole to the end of the cam.
Firstlock Straight Cam 30mm
30mm Straight cam for use with FL Round face and Square face Cam locks
30mm length is measured from centre of hole to the end of the cam.
Firstlock Straight Cam 35mm
35mm Straight cam for use with FL Round face and Square face Cam locks
35mm length is measured from centre of hole to the end of the cam.
Firstlock Straight Cam 38mm
38mm Straight cam for use with FL Round face and Square face Cam locks
38mm length is measured from centre of hole to the end of the cam.
Firstlock Straight Cam 40mm
40mm Straight cam for use with FL Round face and Square face Cam locks
40mm length is measured from centre of hole to the end of the cam.
Firstlock Straight Cam 45mm
45mm Straight cam for use with FL Round face and Square face Cam locks
45mm length is measured from centre of hole to the end of the cam.
Firstlock Straight Cam 50mm
50mm Straight cam for use with FL Round face and Square face Cam locks
50mm length is measured from centre of hole to the end of the cam.
Firstlock Straight Cam 60mm
60mm Straight cam for use with FL Round face and Square face Cam locks
60mm length is measured from centre of hole to the end of the cam.
Firstlock Bent Cam 11mm x 33mm
33mm Bent cam with a 11mm bend for use with FL Round face and Square face Cam locks
33mm length is measured from centre of hole to the end of the cam.
Firstlock Bent Cam 12mm x 33mm
33mm Bent cam with a 12mm bend for use with FL Round face and Square face Cam locks
33mm length is measured from centre of hole to the end of the cam.
Firstlock Bent Cam 16mm x 31mm
31mm Bent cam with a 16mm bend for use with FL Round face and Square face Cam locks
31mm length is measured from centre of hole to the end of the cam.
Firstlock Bent Cam 2mm x 37mm
37mm Bent cam with a 2mm bend for use with FL Round face and Square face Cam locks
37mm length is measured from centre of hole to the end of the cam.
Firstlock Bent Cam 3mm x 29mm
29mm Bent cam with a 3mm bend for use with FL Round face and Square face Cam locks
29mm length is measured from centre of hole to the end of the cam.
Firstlock Bent Cam 3mm x 41mm
41mm Bent cam with a 3mm bend for use with FL Round face and Square face Cam locks
31mm length is measured from centre of hole to the end of the cam.
Firstlock Bent Cam 5mm x 25mm
25mm Bent cam with a 5mm bend for use with FL Round face and Square face Cam locks
25mm length is measured from centre of hole to the end of the cam.
Firstlock Bent Cam 5mm x 33mm
33mm Bent cam with a 5mm bend for use with FL Round face and Square face Cam locks
33mm length is measured from centre of hole to the end of the cam.
Firstlock Bent Cam 5mm x 50mm
50mm Bent cam with a 5mm bend for use with FL Round face and Square face Cam locks
50mm length is measured from centre of hole to the end of the cam.
Firstlock Bent Cam 6mm x 31mm
31mm Bent cam with a 6mm bend for use with FL Round face and Square face Cam locks
31mm length is measured from centre of hole to the end of the cam.
Firstlock Bent Cam 6mm x 37mm
37mm Bent cam with a 6mm bend for use with FL Round face and Square face Cam locks
37mm length is measured from centre of hole to the end of the cam.
Firstlock Bent Cam 7mm x 47mm
47mm Bent cam with a 7mm bend for use with FL Round face and Square face Cam locks
47mm length is measured from centre of hole to the end of the cam.
Firstlock Bent Cam 8mm x 40mm
40mm Bent cam with a 8mm bend for use with FL Round face and Square face Cam locks
40mm length is measured from centre of hole to the end of the cam.
Firstlock Bent Cam 9mm x 42mm
42mm Bent cam with a 9mm bend for use with FL Round face and Square face Cam locks
42mm length is measured from centre of hole to the end of the cam.
Firstlock Notched Cam 20mm
20mm Notched cam for use with FL Round face and Square face Cam locks
20mm length is measured from centre of hole to the flat section of the cut out.
Firstlock Notched Cam 24mm
24mm Notched cam for use with FL Round face and Square face Cam locks
24mm length is measured from centre of hole to the flat section of the cut out.
Firstlock Notched Cam 27mm
27mm Notched cam for use with FL Round face and Square face Cam locks
27mm length is measured from centre of hole to the flat section of the cut out.
Firstlock Notched Cam 30mm
30mm Notched cam for use with FL Round face and Square face Cam locks
30mm length is measured from centre of hole to the flat section of the cut out.
Firstlock Notched Cam 33mm
33mm Notched cam for use with FL Round face and Square face Cam locks
33mm length is measured from centre of hole to the flat section of the cut out.
Firstlock Notched Cam 36mm
36mm Notched cam for use with FL Round face and Square face Cam locks
36mm length is measured from centre of hole to the flat section of the cut out.
Firstlock Notched Cam 40mm
40mm Notched cam for use with FL Round face and Square face Cam locks
40mm length is measured from centre of hole to the flat section of the cut out.
Firstlock Notched Cam 45mm
45mm Notched cam for use with FL Round face and Square face Cam locks
45mm length is measured from centre of hole to the flat section of the cut out.
Firstlock Notched Cam 50mm
50mm Notched cam for use with FL Round face and Square face Cam locks
50mm length is measured from centre of hole to the flat section of the cut out.
