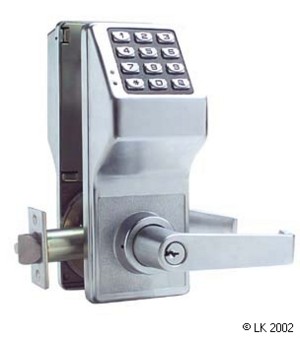

Trilogy T2 Digital Lockset

The Trilogy T2 Electronic Digital Lockset DL2700WP-26D is a high quality stand alone access control lock that has a key override function.

Features include:

• Up to 100 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes
• easily fits in place of a standard knobset
• weatherproof - suitable where weather conditions are a problem (-35C to +66C)
• recommended for timber doors with a thickness between 40mm-47mm
• supplied with a 70mm backset as standard with the options of a 60mm or 127mm latch
• fully reversible with built-in clutching mechanism to protect against forced attack.
• powered by 5 alkaline AA batteries: 175,000 cycles, typical.
• multi level user codes & one time service codes, free passage, group or total lock out modes.
• option of once only use of a code allowing service person access. this code can be reset after its use.
•  Alarmlock Trilogy locks are fingertip programmable at vandalproof metal keys.
• key override feature supplied, SC43 keyway.
• programmable relay functions.
• durable BHMA Grade 1 lockset
• available in a satin chrome finish

 3mm packing plate available as an optional extra.
