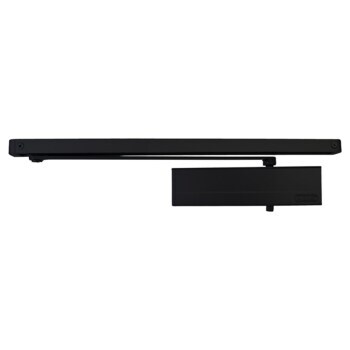

Black Door Closer Abus AC7303MB Slide Arm

Black Door Closer Abus AC7303MB Slide Arm

The ABUS AC7303 Matt Black is a rack and pinion, commercial grade door closer with slide arm, particularly quick and easy to install on most applications. For standard pull side installation or if possible transom mount on the push side.

Non-handed and suitable for doors up to 950 mm in width.

• Power size EN3.
• Adjustable latching and closing speeds.
• Adjustable backcheck.
• Slide arm design.
• Suitable for doors up to 950 mm wide.
• Suitable for doors up to 60kg.
• Dimensions 233 (L) x 42 mm (W).
• Slide-on cover plate keeps the installation cosmetically neat.
• For standard pull side installation or if possible transom mount on the push side.
• Non-handed.
• Hydraulic opening buffer.
• Finished in matt black.
• Supplied boxed.

Technical Specifications

Brand	ABUS
Adjustable Closing Speed	Yes
Adjustable Latching Speed	Yes
Finish	Matt Black
Has Backcheck	Yes
Has Delay Action	No
Has Slide Arm	Yes
Parallel Arm Bracket Included	No
Spring Strength (CLOSER2)	EN3
Fire Rated (FIRERATED)	No
