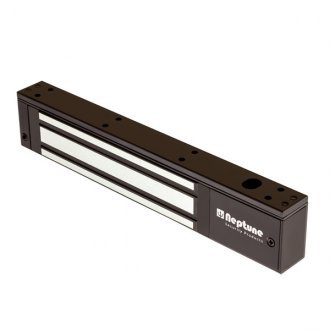

NEML280MB Black Monitored Single Door Maglock 280kg
Black Neptune Monitored Single Door Maglock 280kg
NEML280MB
Neptune monitored single door mag lock.
Dual voltage 12vdc @ 480mA, 24vdc @ 240mA.
Suitable for Indoor use only.
Secure SSL Checkout | Trusted Australian Business
Estimate Shipping
Deliver To:
Product Details
Description
Black Neptune Monitored Single Door Maglock 280kg
NEML280MB
Neptune monitored single door mag lock.
Suitable for Indoor use only.
Features:
- Single door monitored magnetic lock.
- Dual voltage 12vdc @ 480mA, 24vdc @ 240mA.
- Monitored, door status sensor.
- LED indicator.
- The overload current of relay contact is 1amp.
.Overload is strictly prohibited for voltage of 24V-DC. - Built-in time delay 0, 3, 6 or 9 seconds.
- Holding force up to 280kgs.
- Matt black aluminium housing.
- Zinc plated electromagnetic body.
- Magnet size 250 (L) x 47 (H) x 26 mm (D).
- Armature plate 180 (L) x 36 (H) x 11 mm (D).
- Weight 2kg.
- L and Z mounting brackets available below.
Specifications
Documents
Reviews
Accessories
NEMLB2B Black 280kg "L" Bracket
Neptune Black 280kg "L" Bracket
NEMLB2B
Neptune "L" bracket.
Suitable for narrow headed doors.
Dimensions 249 (L) x 48 (W) x 28.5 mm (H).
Finished in matt black aluminium.
Weight 0.27kg.
View full product description
NEMLB3B Black 280kg "L & Z" Brackets
Neptune Black 280kg "L & Z" Brackets
NEMLB3B
Neptune "L & Z" brackets
Suitable for inward opening doors.
Dimensions:
"L" 249 (L) x 48 (W) x 28.5 mm (H)
"Z" 180 (L) x 50 (W) x 50 mm (H).
Finished in satin matt black aluminium.
Weight 0.75kg.
View full product description
