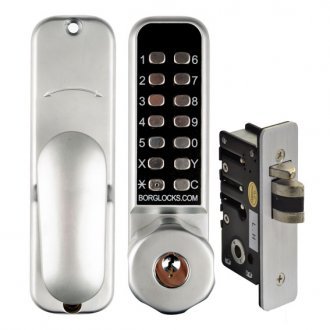

Borg Digital Lock 2702 Knob ECP Hold Back Key Override

Borg Digital Lock 2702 Knob Hold Back Key Override

Borg 2700 ECP series digital lock with 28 mm backset mortice lock and key override.

Now with on-door Easi-Code Pro code changing.

About ECP Easi-Code Procedure

No longer is it necessary to remove the lock and tumblers, the code can be changed with the lock on the door.

Features:

• New Easi-code on-door code changing procedure.
• Fully mechanical digital lock with holdback.
• External keypad with key override.
• Inside handle free at all times.
• Holdback function (can be removed if not required).
• Mortice latch compatible with electric strikes.
• Reinforced latch with nylon insert.
• Backset of 28 mm.
• 15.5 mm bolt projection.
• Face plate 96 x 26 mm.
• Lock body 75 (H) x 46 (D) x 23 (W) mm.
• Fully reversible.
• Suits doors from 35-54 mm thick.
• Designed for light to medium usage areas.
• Suitable for internal use.
• More than 4000 codes to choose from.
• Supplied with code change block pin
  for deactivating external code change procedure (optional).
• Finished in satin chrome.

BL2700-ECP-Easicode-Pro-Instructions-V2-2.pdf (296kB)

Ali-latch-handling-v2.pdf (784kB)

BL2701-ECP-Technical-Data-Sheet.pdf (1MB)
