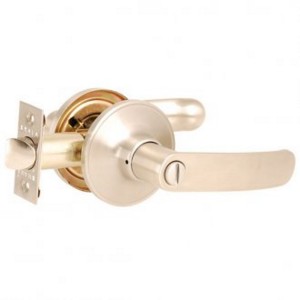

Brava Urban Privacy Leverset LYR601 S/Ch.
Brava Urban LYR series concealed fix privacy leverset. Domestic grade privacy leverset.
Privacy function
Outside opened by lever when free. Can be unlocked in an emergency situation with a coin or screwdriver.
Inside opened by lever when free, turnsnib locks and unlocks both levers.
Satin Chrome
Secure SSL Checkout | Trusted Australian Business
Estimate Shipping
Deliver To:
Product Details
Description
Brava Urban LYR series concealed fix privacy leverset.
Domestic grade privacy leverset.
Privacy function
Outside opened by lever when free. Can be unlocked in an emergency situation with a coin or screwdriver.
Inside opened by lever when free, turnsnib locks and unlocks both levers.
Additional info
Tiebolt concealed fixing.
Exterior emergency release slot.
Horizon lever design.
Finished in Satin Chrome
Supplied boxed with mounting hardware
Door thickness 35-51mm
Backset adjustable 60/70mm
max. Lever / knob projection
distance may not include turnsnib 53mm
Strike 70mm x 27mm x 1.2mm
Latch adjustable 60/70mm
Latch face plate 57mm x 25mm
Door handing Non-handed levers
Rose 66.5mm
