LOX Maglock LCCW15S Single Door Mini 75KGS

LOX Maglock LCCW15S Single Door Mini 75KGS

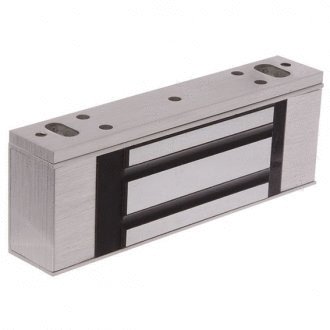

The LOX LCCW15S “Mini” electro magnetic locks is specifically designed for securing cupboards, cabinets, lockers and the like, where a reasonably high holding force is required.

Features:

• Micro/min magnetic lock.
• Suit single door cupboard.
• Dual voltage 12vdc/24vdc.
• Current draw 12Vdc @ 240mA & 24Vdc @ 120mA.
• Surface mounted magnet.
• Non-monitored.
• Satin anodised aluminium housing.
• Zinc plated electromagnetic body.
• Grain orientated silicone steel armature plate.
• Magnet size 107mm L x37mm H x 20mm D.
• Armature plate 65mm L x 32mm H x 9mm D.
• Holding force 75kg.
• Built-in varistor (MOV) surge protection.
• No moving parts.
