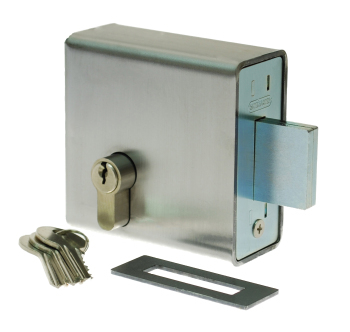

Gatemaster Weld on Deadlock GD50

Gatemaster GD50 Weld on Deadlock



Double throw deadlock ready to be welded onto a 50mm wide metal gate frame.

The double throw weld in deadlock simple mechanism and design makes it perfect for use on a wide range of gate styles.  Weld the lockcase into the gate and get the case galvanised and painted with the gate.  The lock mechanism simply slides and bolts into the case after painting.

• Secure – Deadbolt moves 24mm with two turns of the key
• Adaptable – Square design suits a wide range of gate styles
• Convenient – Key can be operated from both sides
• 2 different lock case widths available to suit different gate box section sizes – 40mm or 50mm
• Supplied with 3 copies of the key, and weld on flat striker plate

Dimension:

• 60mm backset double euro cylinder supplied
• Mild steel lockbox is 95mm wide
• 90mm high
• 50mm thick
• Deadbolt throws 24mm
