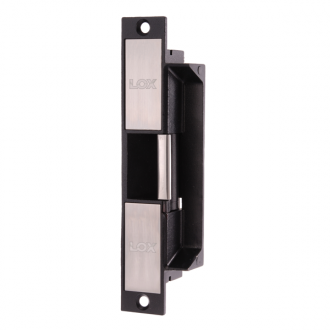

LOX Electric Strike LES20

LOX Electric Strike LES20 12-36VDC PTL/PTO Non Monitored



The LES20 series electric strikes are designed for use with all access control systems.

The LES20 series now come with a 10 mm strike lip as standard, to prevent possible personal injury and damage to clothing as with the 15 mm lip. A 5 mm lip extension is included with the strike if needed.

Fail safe/fail secure is changeable on site.

Suitable for use on hinged doors to work with a extensive range of locks that have latches.

Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 ( Fire resistant door sets) .



FEATURES

• Multi voltage 12~36v dc.
• Current 12V DC @ 220mA, 24V DC @ 120mA, 36V DC @ 80mA.
• Non-monitored.
• Fire rated up to 4 hours.
• Power to lock/power to open field selectable.
• Stainless steel construction.
• Solenoid can be continuously powered.
• Optional extension lips.
• Self adhesive installation template.
• Includes tab mounting kit.
• Pre-drilled for extension lips.
• Holding strength of over 1490kg.
• LES20 is suitable for 18 mm latch with a 3 mm door gap.
