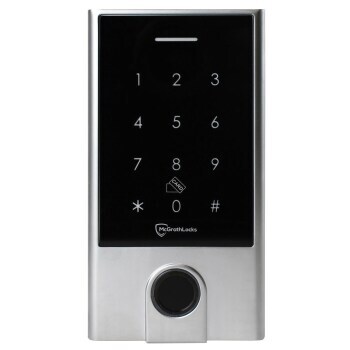

McGrath Locks TGFP70 Access Control Keypad with Built In WiFi
The TGFP70 is a standalone access keypad with a tempered glass touchscreen, built-in Wi-Fi and support for multiple access methods, including fingerprint recognition. It is a hardwired device that requires a 12v power supply and can be used to control electric strikes, auto doors, garage doors and gates etc. Access can be managed via BLE, pin code, RFID credential and fingerprint.
Utilising the powerful McGrath Locks App, lock and user settings are easily configured and managed. Access can be provided to family and visitors alike through fingerprint, pin code, RFID credential and eKeys managed via BLE. The TGFP70 has built in Wi-Fi giving you the ability to remotely access your device from anywhere in the world.
Secure SSL Checkout | Trusted Australian Business
Estimate Shipping
Deliver To:
Product Details
Description
McGrath Locks TGFP70 Access Control Keypad With Fingerprint and Built In WiFi, BLE, RFID and Pin Code, 20,000 Users, 12V DC, IP66 Rating, Silver Finish, Supplied With 2 x Fobs
The TGFP70 is a standalone access keypad with a tempered glass touchscreen, built-in Wi-Fi and support for multiple access methods, including fingerprint recognition. It is a hardwired device that requires a 12v power supply and can be used to control electric strikes, auto doors, garage doors and gates etc. Access can be managed via BLE, pin code, RFID credential and fingerprint.
Utilising the powerful McGrath Locks App, lock and user settings are easily configured and managed. Access can be provided to family and visitors alike through fingerprint, pin code, RFID credential and eKeys managed via BLE. The TGFP70 has built in Wi-Fi giving you the ability to remotely access your device from anywhere in the world.
Description
- Lock functions and access easily managed via McGrath Locks App.
- Enrol Pin Codes, RFID credentials, fingerprints and send eKeys to your family and visitors.
- Passage Mode can be used to leave your door open when required.
- Anti peep code function stops unauthorised people seeing the correct code inputted.
- Incorrect attempt lockout.
- Reset button can be disabled in App for additional security.
- Audit trail within App to see who accessed your door and when.
- Tempered Glass Screen for extra durability.
- Keypad Dimensions 140 (H) x 68 (W) x 25 mm (D).
- Silver body with black tempered glass keypad
Enrolment and Verification
- Unlocking Methods: Pin code, RFID credential, Fingerprint, Bluetooth, Wi-Fi
- Supported Systems: Android - 4.3 /IOS 7.0 and above.
- Platforms: TTLock, TTHotel.
- Communication Mode: Bluetooth 5.0 BLE and above.
Lock Features and Functions
- Length of Password: 4-9 Digits (Minimum of 4 digits available when set via APP.
- Bluetooth Capacity (eKeys): Unlimited.
- Pin Code Capacity: 150.
- Fingerprint Capacity: 500.
- RFID Capacity: 20,000.
- Card Working Frequency: 13.56MHz.
- Voltage: 12V DC.
- Motor Working Current: <80mA.
- Relay Contact Rating: <2A @12VDC.
- Keypad: Capacitive Touch Keypad.
Operating Environment
- Environment: -30°C to 60°C.
- Humidity: 0%-85% RH.
- IP Class: IP66.
