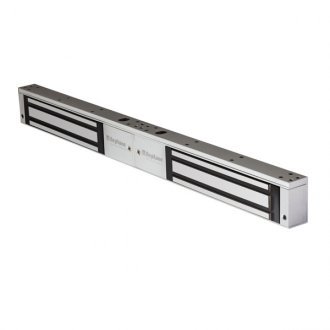

NEML280DM Satin Chrome Monitored Double Door Maglock 280kg

Neptune Satin Chrome Monitored Double Door Maglock 280kg

NEML280DM

Neptune monitored double door mag lock.

Suitable for Indoor use only.

Features:

• Double door monitored magnetic lock.
• Dual voltage 12vdc @ 480mA, 24vdc @ 240mA per magnet.
• Monitored, door status sensor.
• LED indicator.
• The overload current of relay contact is 1amp.
  .Overload is strictly prohibited for voltage of 24V-DC.
• Built-in time delay 0, 3, 6 or 9 seconds.
• Holding force up to 280kgs per magnet.
• Satin anodised aluminium housing.
• Zinc plated electromagnetic body.
• Magnet size 500 (L) x 47 (H) x 26 mm (D).
• Armature plates 180 (L) x 36 (H) x 11 mm (D).
• Weight 4kg.
• L and Z mounting brackets available below

NEPTUNE_280-Series-Double-Door-Maglocks_UserManual_LR.pdf (148kB)
