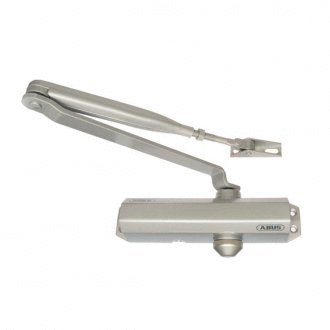

Abus Closer AC6024 Size 2-4 Standard Arm

The ABUS AC6024 is a rack and pinion, economy door closer, particularly quick and easy to install on most applications.

Multi position mounting template enables adjustment on site to meet most conditions. Non-handed and suitable for doors up to 1100 mm in width.

Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

FEATURES:

• Adjustable power from EN2, 3 or 4.
• The power is altered by adjusting the position of the body on the mounting template.
• Adjustable latching and closing speeds.
• Adjustable backcheck.
• Standard arm design.
• Includes parallel arm bracket.
• Suitable for doors up to 1100 mm wide.
• Suitable for doors up to 85kg.
• Dimensions 220 (L) x 50 mm (W). Self adhesive mark out template.
• Non-handed.
• EN1154 certified. Fire rated to Australian Standard Locally tested and certified.
• Finished in silver.
