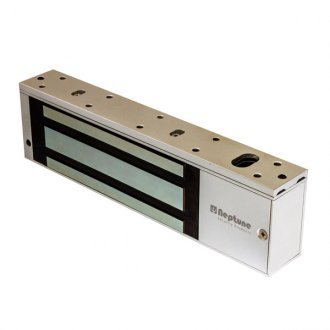

NEML500M Satin Chrome Monitored Single Door Maglock 500kg

Satin Chrome Neptune Monitored Single Door Maglock 500kg

NEML500M

Neptune monitored single door mag lock.

Suitable for Indoor use only.

Features:

• Single door monitored magnetic lock.
• Dual voltage 12vdc @ 480mA, 24vdc @ 240mA.
• Monitored, door status sensor.
• LED indicator.
• The overload current of relay contact is 1amp.
  .Overload is strictly prohibited for voltage of 24V-DC.
• Built-in time delay 0, 3, 6 or 9 seconds.
• Holding force up to 500kgs per magnet.
• Satin anodised aluminium housing.
• Zinc plated electromagnetic body.
• Magnet size 265 (L) x 71 (H) x 40 mm (D).
• Armature plate 185 (L) x 60 (H) x 13 mm (D).
• Weight 4.5kg.
• L and Z mounting brackets are available below



NEPTUNE_500-Series-Single-Door-Maglocks_UserManual_LR.pdf (140kB)
